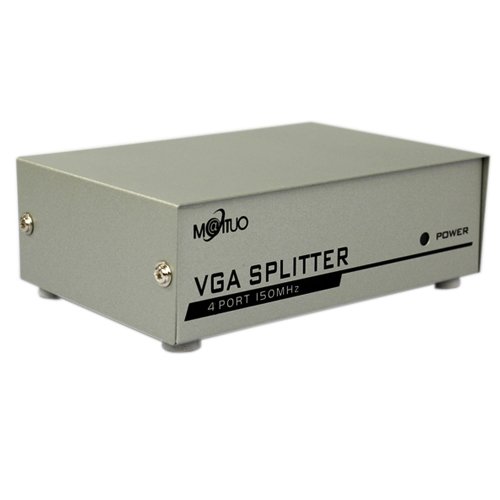

4 Ports VGA Splitter 1 PC to 4-Port VGA/SVGA LCD CRT Video Monitor Splitter (Support Daisy Chain)
This is a 4 ports VGA splitter which takes the computer’s VGA singal and displays it on 4 analog monitors. It is compatible with 95% of the monitor on the market and enables up to 64 monitors to share the information of a host computer simutaneously. It is also a boosting device that extends the video signal transmission distance to 213-280 feet (65-85 m), making it an excellent choice for video broadcast systems.
Features£º
100% brand new and high quality.
Compact and light weight design.
Easy to install–plug and play.
1 VGA IN, 4 VGA OUT.
Support ultra high 150 Mhz video(-3dB) bandwith.
Enhance video signals for distance to 213-280 feet (65-85 m).
Can be daisy chain.
Perfectly for test bench facilities, data centers, help desks, video broadcasting, presentations, stock quotes, timetables, educational facilities and so on.
Support resolution is up to 1600 x 1280.
Specification:
Product type: 4 Port VGA Splitter.
Interface Type: 1 VGA INPUT, 4 VGA OUTPUT.
Bandwidth: 150MHz.
Resolution: 1600 x 1280.
Transmission Distance: 213-280 feet (65-85 m).
Power: DC 5V 500mA.
AC Adapter: Input: 110-240V AC 50/60 Hz; Output: DC 5V 1200mA.
Input Level: 0.5-1Vp-p.
HV Channel: input level 0.7-5Vp-p.
Cable Length: 3.2 feet (0.96 m).
Input Resistance: 75¦¸
AC Adapter Cable Length: Approx. 52.8″ (134 cm).
Package Included£º
1 x VGA Splitter, 1 x AC Adapter, 1 x User Manual.
